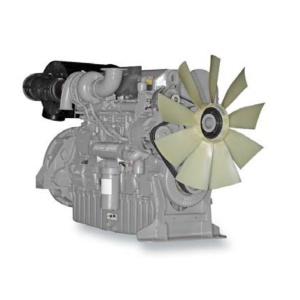

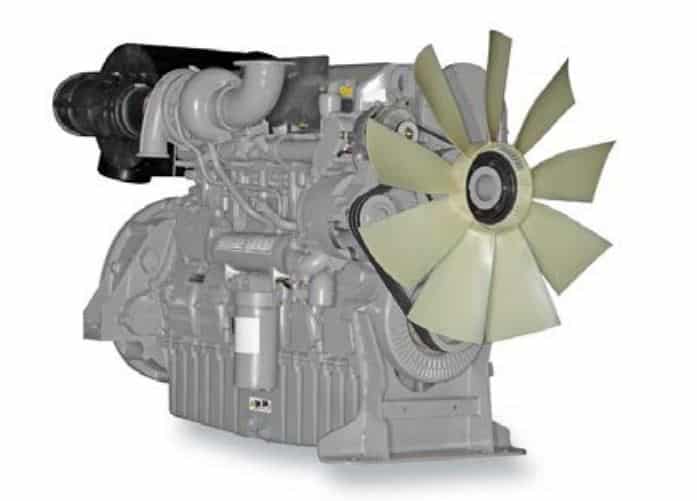

The Perkins 2500 range of diesel engines provides you with output ratings of 455-624 kVA, catering for both your prime and standby power generation needs. The features and benefits of the 2000 Series ensure your generation needs are met.
Flexible packaging of the 6 cylinder engines caters for the space you have available, and with mechanically operated unit fuel injectors, electronic control and carefully matched turbocharging, our 2500 range gives you performance and economy.
Our 2500 range engines are easy to transport and install thanks to their exceptional power-to-weight ratios and compact size, and they provide you with excellent service access for ease of maintenance.
Engines in our ElectropaK 2500 range are delivered to you complete with radiator and air cleaner system already built on, enabling you to simply bolt the engine down, connect it up and start generating.
Make: PERKINS
Model Number: 2506A-E15TAG1
Prime Power: 450 kVA
Standby Power: 495 kVA
Voltage: 230V / 400V
Phase: THREE PHASES
AMP @ Unity: 520 A
AMP @ 0.8PF: 650 A
ONE Step Load: 65% OF AMP RATING
General Specifications:
Standard stainless-steel exhaust with silencer
Personalised specifications can be accommodated.
Base frame design incorporates an integral fuel tank
Ventilation parts are designed with modular principles
Includes diesel level sensor and information to the controller
Coastal antirust stainless-steel options are available for the canopy
Standard filler cap and fuel level gauge is located inside the canopy
All canopies are weather resistant and lined with sound reduction foam
Canopies are all metal and powder-coated, equipped with lockable doors
Engine Specifications:
Fuel connection hoses
Cooling radiator and fan
Heavy duty diesel engine
DC starter and charge alternator
Replaceable fuel filter, oil filter and dry element air filter fuel connection hoses
Warranty Specifications:
Qualified support team on standby.
Installations to be done by qualified persons only
Service every 250 hours or annually, whichever occurs first
Unit to be used as a standby power supply and not a main power supply
Maintenance contracts are available on request – we have various options on offer.
If the installation is done by IGNITE Petroleum an additional 6 months will be added to the standard 1 year warranty
Standard 2 year or 1000 hours warranty on engine and a 1-year warranty on the rest of the set – valid from the day of dispatch
Optional Specifications:
Optional synchronizing for kVA requirements larger than 600 we suggest you consider synchronization as an option.
- When busy with maintenance other sets can still provide power
- It is more cost effective for the purchase price, maintenance and fuel consumption
- If underload, glazing will be prevented due to the effective control on the sets by regulating and managing the load requirements and switching between sets automatically
Our highly trained team will be on standby and will ensure the system is designed to meet all your requirements.
Optional Control Functions:
All controller makes and models are available
External siren and light are available on request
GSM modems are available for SMS and remote-control
All circuits can be designed to meet specified requirements
Optional:
Island mode – only available for sets larger than 150kva
In most manufacturing systems any electrical supply interruption can result in large material and production losses. this nightmare can be resolved during scheduled power outages with the ‘no brake system’ known as island mode. this is a plc-controlled system designed with the most advanced technology.
Our advanced, UK trained team, will design and manufacture this system to meet all your requirements.
Available colours:
Standard Colours: Black | Grey | Charcoal | White | Avo Green
Custom Colours: All colours can be accommodated based on the available drum powder coating
Our other generator brands include:
FAW, Volvo, Perkins, Kirloskar, LOVOL, Scania (depending on the kVA).
Data sheets are available upon request, and rental options are offered for specific models of complete generators.
