The Perkins 403 range of electric power (EP) engines delivers the same compact benefits of its 2 cylinder stablemate, but takes a stride forward in terms of noise, refinement and power.
The 3 cylinder range offers excellent power density and superb fuel economy and is designed to meet your power generation needs in both unregulated territories where extreme conditions are likely, and higher regulated territories with more stringent emissions standards.
When you need power and reliability in a compact application, you can trust the 400 Series EP engines to deliver. Our engineers have carefully designed every component to minimise space.
This can come in particularly handy in higher regulated territories where you need to consider size and space for aftertreatment solutions. Some models in the series also offer the convenience of switching between engine speeds and electrical frequencies to match your application and territory perfectly.
Make: PERKINS
Model Number: 403D-15G1
Prime Power: 13 kVA
Standby Power: 14.3 kVA
Voltage: 230V / 400V
Phase: THREE PHASES
AMP @ Unity: 19 A
AMP @ 0.8PF: 15 A
ONE Step Load: 70% OF AMP RATING
General Specifications:
Standard stainless-steel exhaust with silencer
Personalised specifications can be accommodated.
Base frame design incorporates an integral fuel tank
Ventilation parts are designed with modular principles
Includes diesel level sensor and information to the controller
Coastal antirust stainless-steel options are available for the canopy
Standard filler cap and fuel level gauge is located inside the canopy

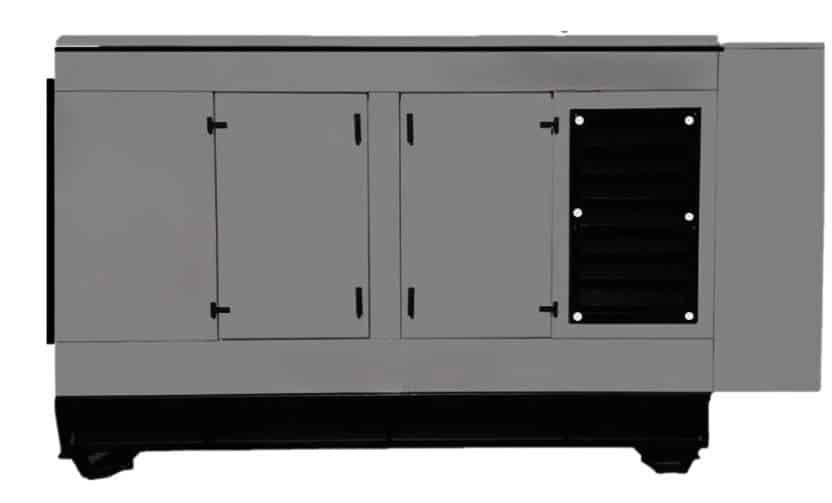

All canopies are weather resistant and lined with sound reduction foam
Canopies are all metal and powder-coated, equipped with lockable doors
Engine Specifications:
Fuel connection hoses
Heavy duty diesel engine
Cooling radiator and fan
DC starter and charge alternator
Replaceable fuel filter, oil filter and dry element air filter fuel connection hoses
Alternator Specifications:
The engine and alternator are closely coupled by means of sae flange
Anti-vibration pads are affixed between engine alternator feet and base frame
Warranty Specifications:
Qualified support team on standby.
Installations to be done by qualified persons only
Service every 250 hours or annually, whichever occurs first
Unit to be used as a standby power supply and not a main power supply
Maintenance contracts are available on request – we have various options on offer.
If the installation is done by IGNITE Petroleum an additional 6 months will be added to the standard 1 year warranty
Standard 2 year or 1000 hours warranty on engine and a 1-year warranty on the rest of the set – valid from the day of dispatch
Control Panel Specifications:
The controller is a microprocessor-based control unit containing all necessary functions for protection and control of the generator unit.
It contains a three-phase ac voltage measuring unit.
The controller is equipped with a LCD display presenting all values and alarms.
The all-in-one controller is designed for the following applications:
- Engine protection
- Breaker control
- Generator protection.
- Automatic engine start / stop
Optional Specifications:
Optional synchronizing for kva requirements larger than 600 we suggest you consider synchronization as an option.
- When busy with maintenance other sets can still provide power
- It is more cost effective for the purchase price, maintenance and fuel consumption
- If underload, glazing will be prevented due to the effective control on the sets by regulating and managing the load requirements and switching between sets automatically
Our highly trained team will be on standby and will ensure the system is designed to meet all your requirements.
Optional Control Functions:
All controller makes and models are available
External siren and light are available on request
GSM modems are available for SMS and remote-control
All circuits can be designed to meet specified requirements
Optional:
Island mode – only available for sets larger than 150kva
In most manufacturing systems any electrical supply interruption can result in large material and production losses. this nightmare can be resolved during scheduled power outages with the ‘no brake system’ known as island mode. this is a plc-controlled system designed with the most advanced technology.
Our advanced, UK trained team, will design and manufacture this system to meet all your requirements.
Available colours:
Standard Colours: Black | Grey | Charcoal | White | Avo Green
Custom Colours: All colours can be accommodated based on the available drum powder coating
Our other generator brands include:
FAW, Volvo, Perkins, Kirloskar, LOVOL, Scania (depending on the kVA).
Data sheets are available upon request, and rental options are offered for specific models of complete generators.
